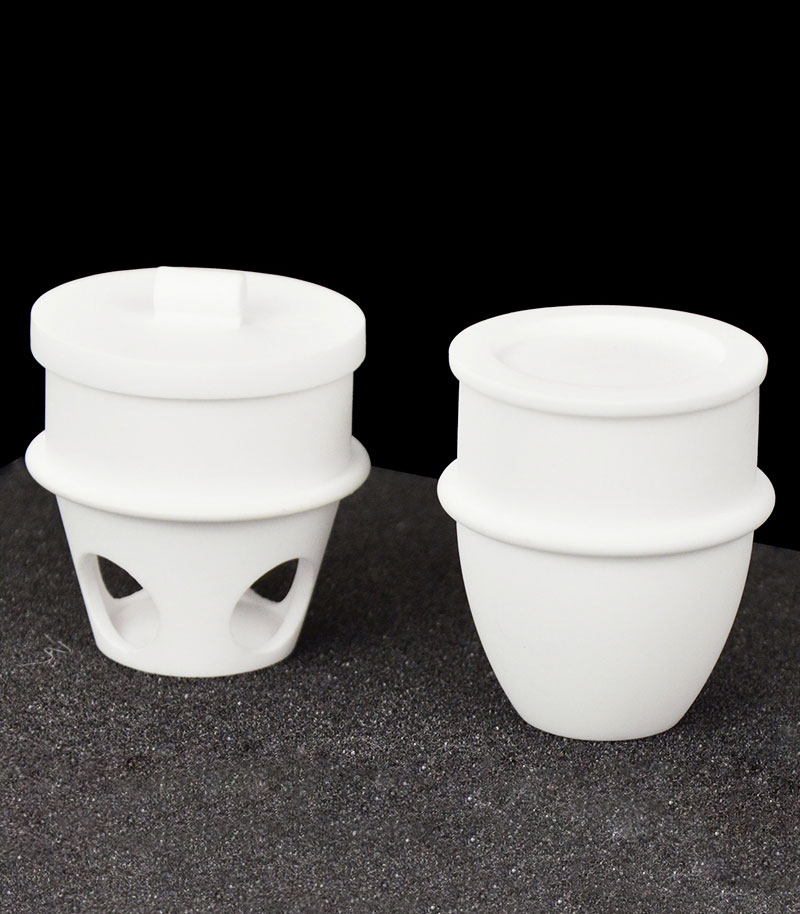

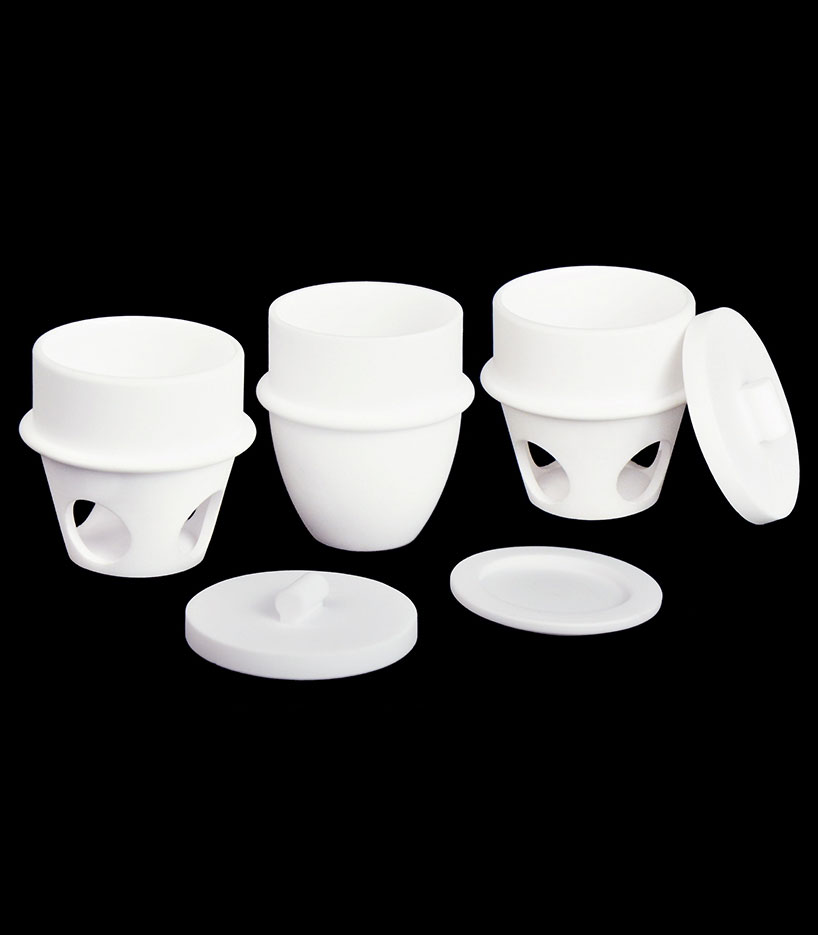

Alumina Crucible with Lid, for Ash/Volatile Matter Testing & Industrial Analyzers
Price range: $5.50 through $10.00
- Diameter: 150mm, Width: 130mm, Height: 60mm, Wall Thickness: 6mm
- This Alumina Tile is manufactured using high-purity Al2O3 (>99%) through a slip-casting/press-casting process. This results in high density and smooth even interior and exterior surfaces. It is designed for long-term use at temperatures up to 1600°C.
- The heating or cooling rate should not be too rapid and must be maintained at less than 4°C per minute, with particular attention required for large crucibles.
- Package Includes: 1 pc/pack
Precautions for Using 99% Alumina Crucibles
Before the first use, the crucible should be placed in an oven at approximately 105°C for 120 minutes to remove moisture.
Do not use gasoline torches, acetylene torches, or alcohol lamps for direct heating to avoid cracking of the crucible due to uneven heating.
- Â The distance between the crucible and the heating element (such as carbon tubes, silicon carbide rods, heating wires, etc.) should be greater than 2 cm.
4. The rate of heating or cooling should not be too rapid. Below 1200°C, the rate should be less than 5°C per minute; above 1200°C, it should be less than 4°C per minute. For cooling, it is recommended to use controlled power cooling. Directly turning off the power at high temperatures may cause rapid initial cooling, potentially leading to cracking.
5. For large crucibles, it is advisable to avoid direct contact between the bottom of the crucible and the furnace floor. Use high-temperature resistant materials such as corundum plates to elevate the crucible, promoting air convection and extending the crucible's lifespan (as shown at right).
RELATED PRODUCTS
99% Alumina Corundum Crucible with Groove, High Temperature Resistant
- Groove design for secure positioning and handling
- This Crucible is manufactured using high-purity Al2O3 (>99%) through a slip-casting process, resulting in high density and smooth, even surfaces on both the interior and exterior. It is designed for long-term use at temperatures up to 1600°C.
- The heating or cooling rate should not be too rapid and must be maintained at less than 4°C per minute, with particular attention required for large crucibles.
Alumina Cylindrical Crucible with Lid, Multiple Sizes, for Muffle Furnace, 0.4ml-80ml
- These Cylindrical Crucibles are manufactured using high-purity Al2O3 (>99%) through a Slip Casting / Press Casting process, resulting in high density and smooth, even surfaces on both the interior and exterior. It is designed for long-term use at temperatures up to 1600°C.
- Usage Instructions: Heat and cool gradually with the furnace;Â Avoid sudden temperature changes (rapid heating or cooling);Â Do not expose to open flames; Not suitable for metal smelting.
Arc-shaped Corundum Crucible with Lid, for Muffle Furnace, 99 Alumina, 100ml-2200ml
- This crucible is suitable for use in a muffle furnace for ash determination or high-temperature experiments and is capable of handling samples with 30% volatile matter and 50% ash content.
- This Arc-Shaped Crucible is manufactured using high-purity Al2O3 (>99%) through a slip-casting process, resulting in high density and smooth, even surfaces on both the interior and exterior. It is designed for long-term use at temperatures up to 1600°C.
Corundum Curved Crucible with Spout, 200ml, 99 Alumina
- This corundum arc-shaped spouted crucible is manufactured using high-purity Al2O3 (>99%) through a slip casting process, resulting in high density and smooth, even surfaces on both the interior and exterior. It is designed for long-term use at temperatures up to 1600°C.
- Total Height: 90mm; Top Diameter: 72mm; Bottom Diameter: 45mm; Thickness: 4mm
- Package Includes: 1 pc/pack
